VALVES | FUS-CIVB | ||

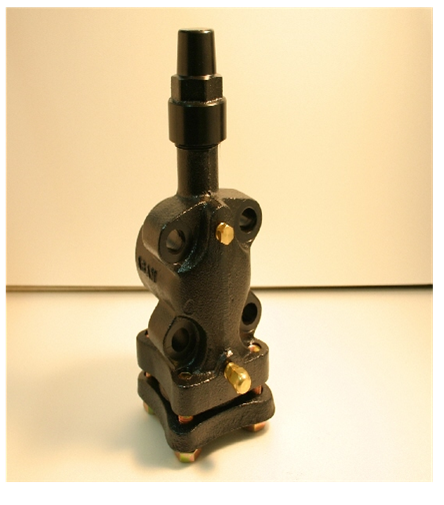

SERVICE VALVES FOR COMP.(GCD45) |
CODE NO. | SIZE | In.Dia | Bolt Hole | Hole to Hole | Out.Dia |
---|---|---|---|---|---|
GCD641508 | 1-5/8" | 54.0/70 | 13.5 | 64*64 | 1-5/8" |
GCD752108 | 2-1/8" | 60.0/75 | 18.0 | 75*75 | 2-1/8" |
GCD781508 | 1-5/8" | 64.3/82 | 19.0 | 78*78 | 1-5/8" |
GCD782108 | 2-1/8" | 64.3/82 | 19.0 | 78*78 | 2-1/8" |
GCD992508 | 2-5/8" | 85.0/106 | 19.0 | 99*99 | 2-5/8" |
GCD993108 | 3-1/8" | 85.0/106 | 19.0 | 99*99 | 3-1/8" |
GCD1224108 | 3-1/8" | 85.0/106 | 19.0 | 102*102 | 3-1/8" |
GCD1083108 | 3-1/8" | 85.0/106 | 19.0 | 108*108 | 3-1/8" |
GCD1224108 | 4-1/8" | 110/130 | 21.0 | 122*122 | 4-1/8" |
